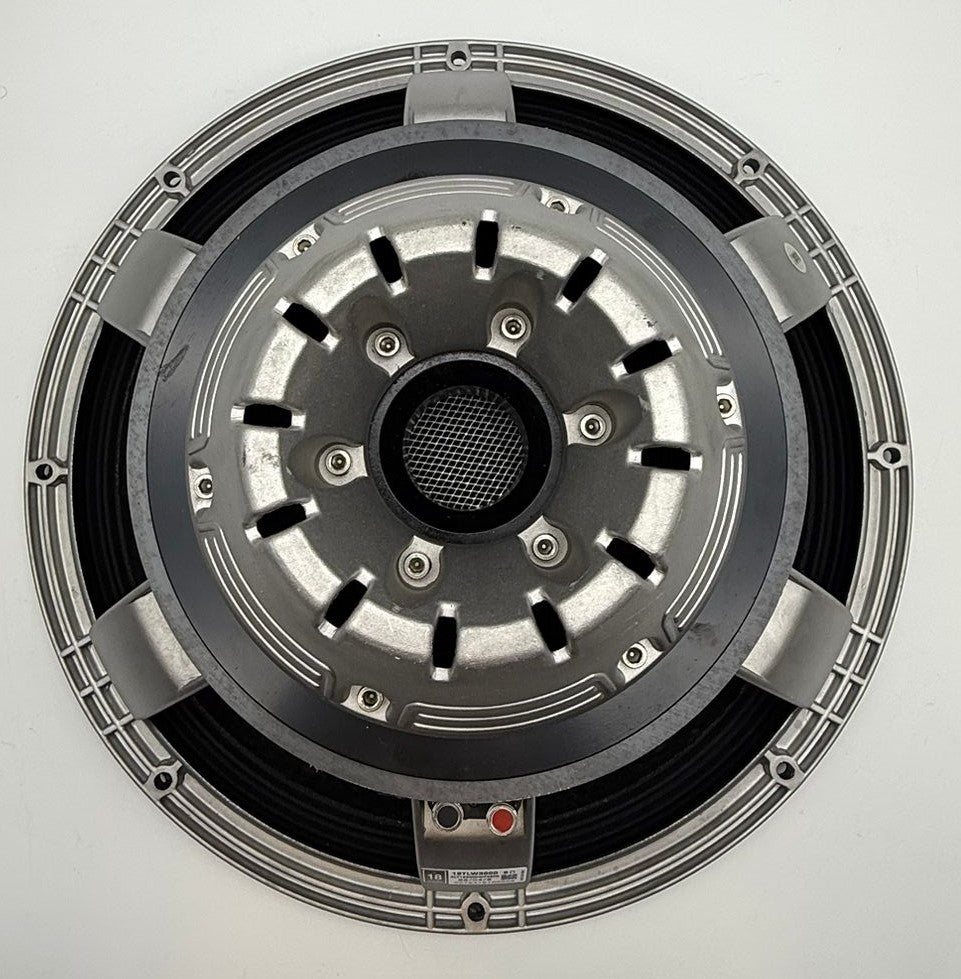

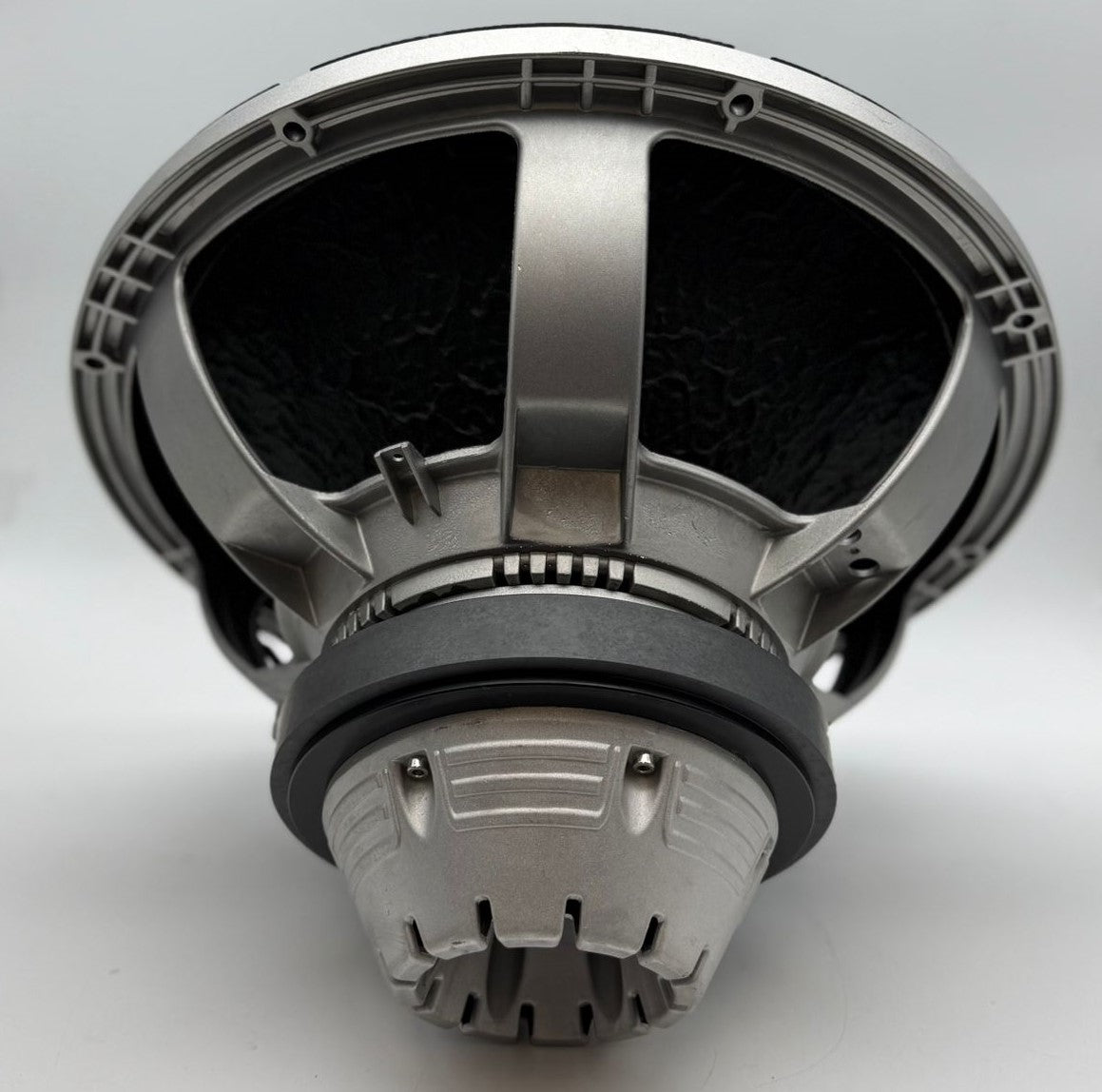

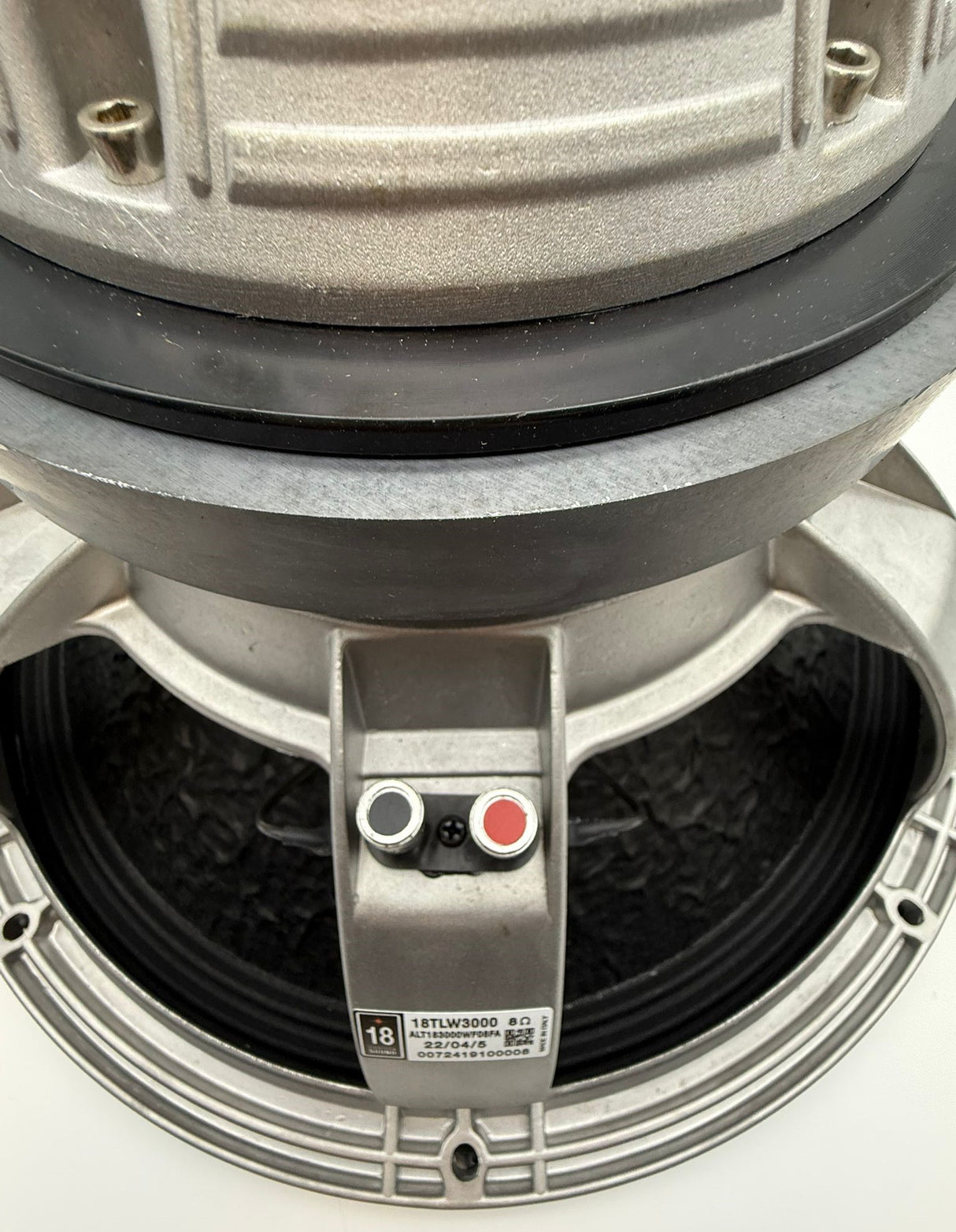

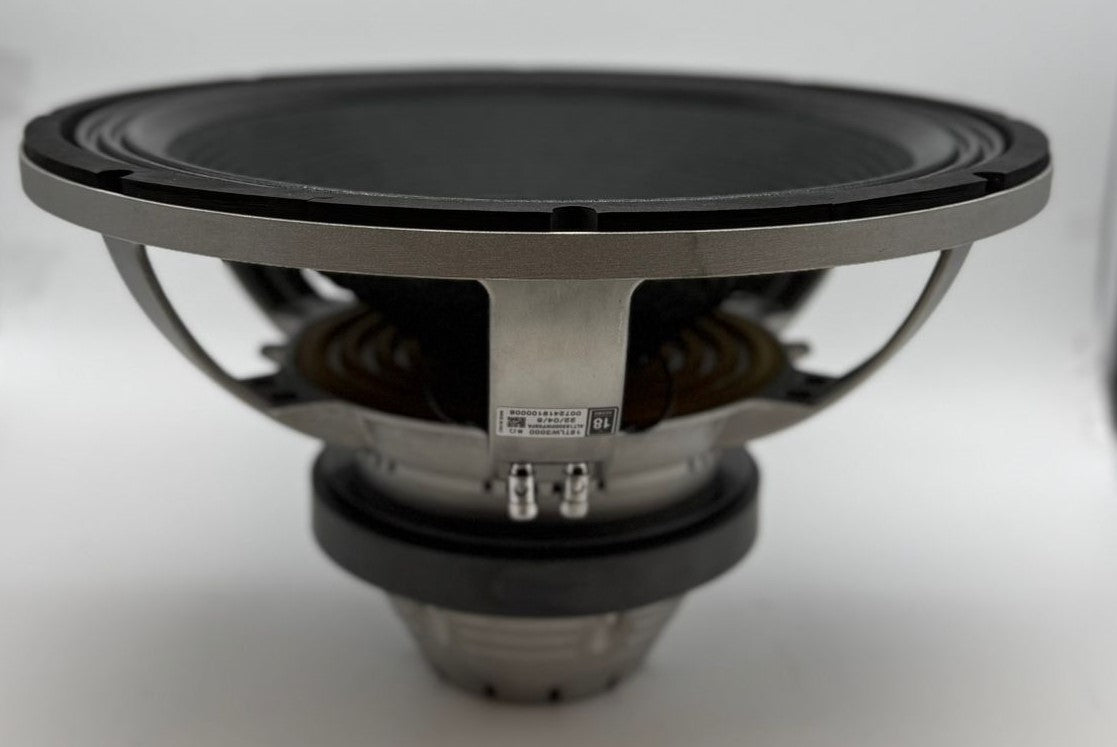

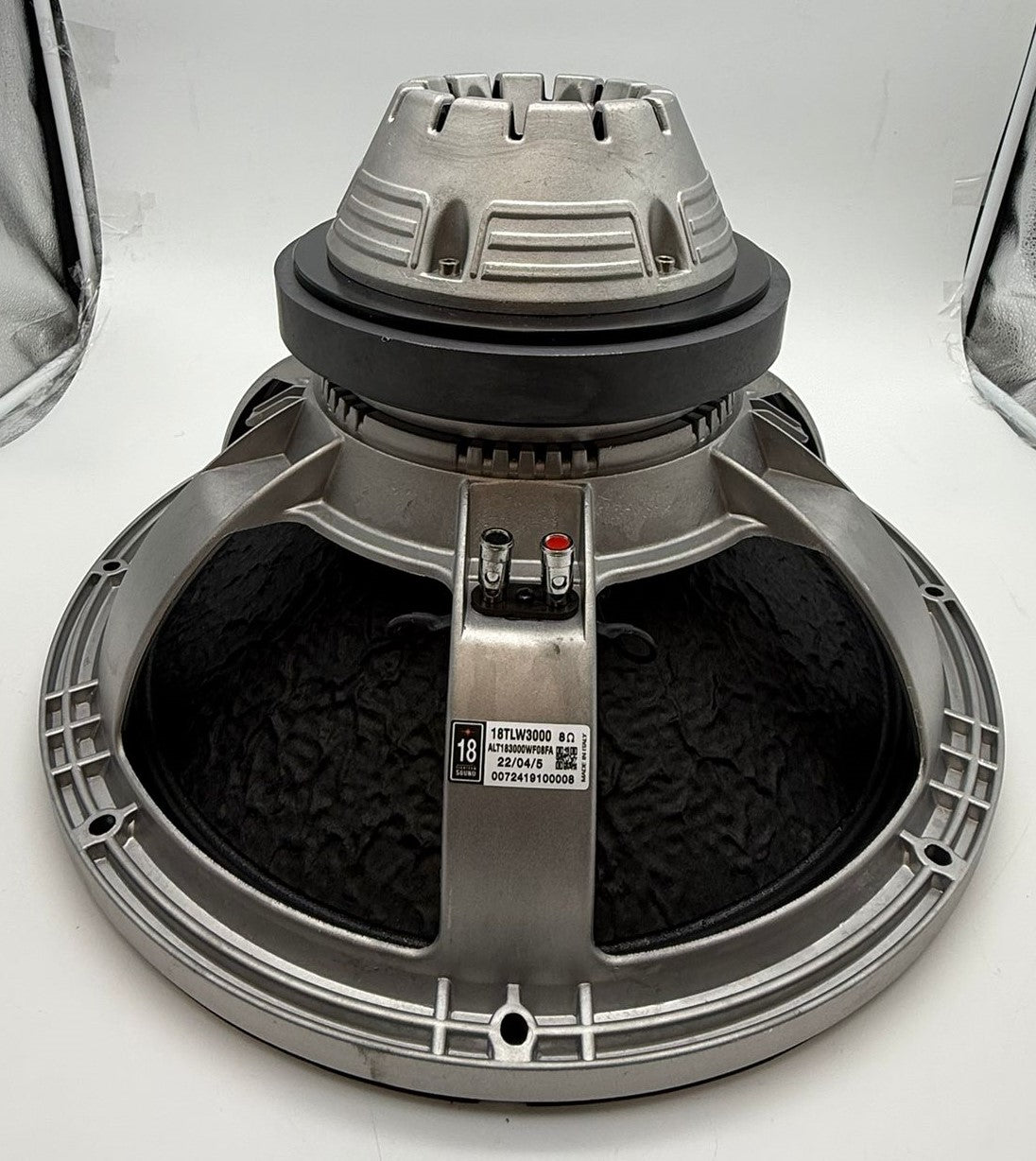

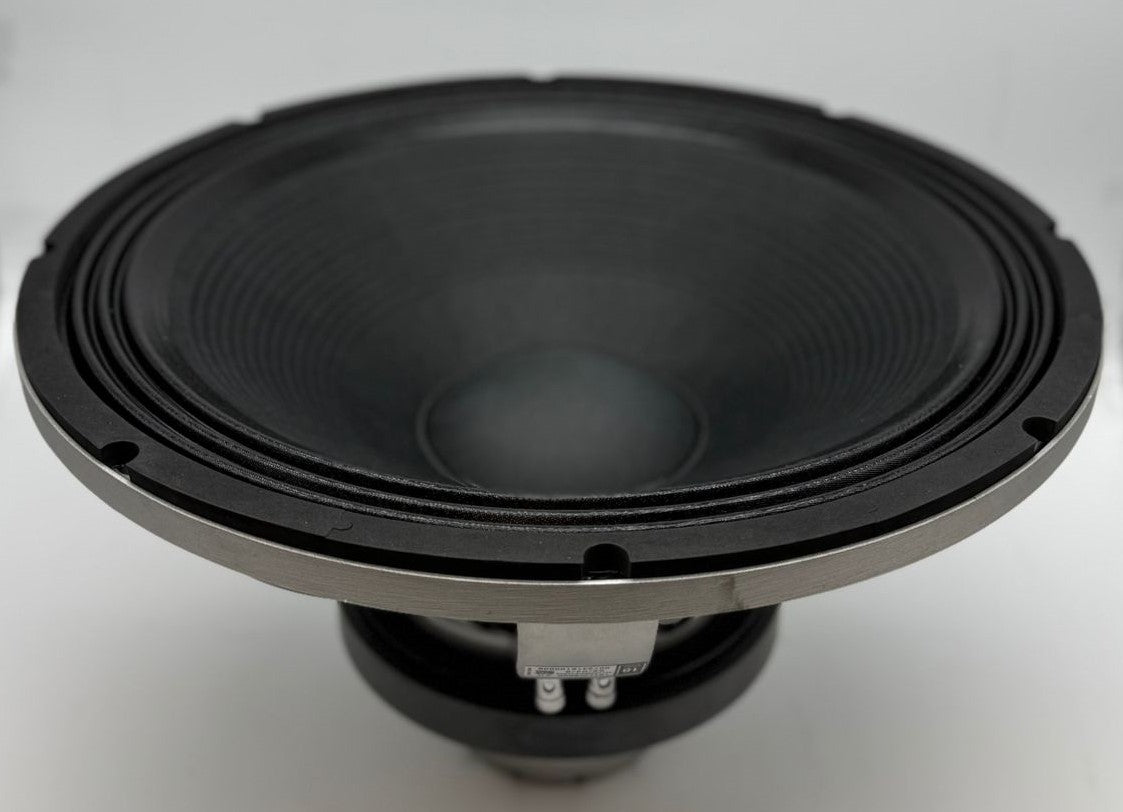

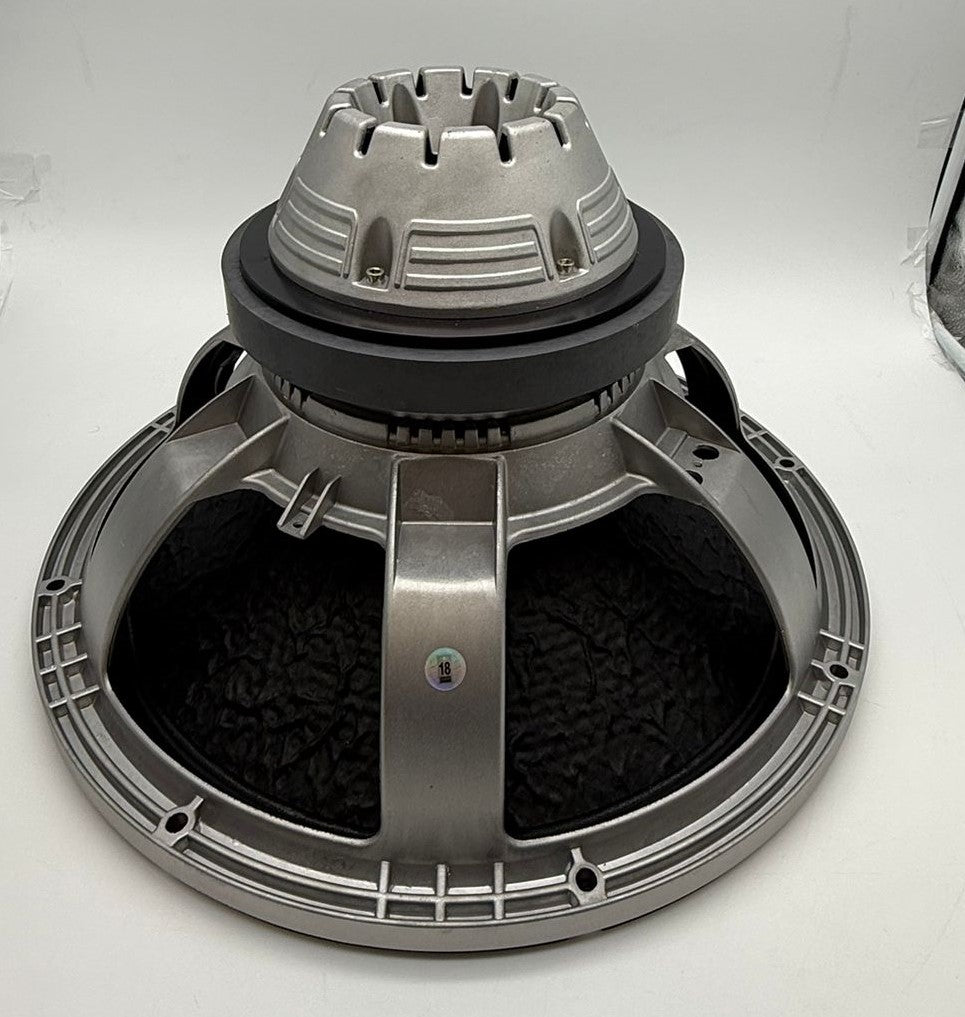

Eighteen Sound 18TLW3000-8 18IN Woofer 3600w 8ohms
Condition : new
Couldn't load pickup availability
Shipping Info
Shipping Info
You will receive your order within 5 to 7 business days
Please Note : These items ship from Canada. While there are no customs duties or extra fees for Canadian buyers, U.S. buyers are responsible for any customs duties, taxes, or tariffs that may apply based on the item’s country of origin.
Refund & Returns
Refund & Returns
Exchanges only in 30 Days. No returns.
Eighteen Sound 18TLW3000-8 18IN Woofer 3600w 8ohms
Description
Description
Eighteen Sound 18TLW3000-8 18IN Woofer 3600w 8ohms BRAND NEW
* We have many of these units available. Please contact us for availability and shipping rates.
* This is a brand new woofer in box.
* We have many units available in stock. Please contact us for more details.
Features and specs:
Extended-range dual-voice-coil ferrite transducer designed for extreme SPL, deep bass, and superior durability — ideal for vented, horn-loaded, or bandpass subwoofer systems.
Key Features
18-inch extended high-power low-frequency driver
1800 W RMS / 3600 W Program Power handling
95 dB SPL (1W/1m) average sensitivity
100 mm (4") Tetracoil dual voice coil — equivalent to > 6" single coil diameter
Ultra-linear suspension for precise and clean bass response
Symmetrical flux and inductance design for reduced distortion

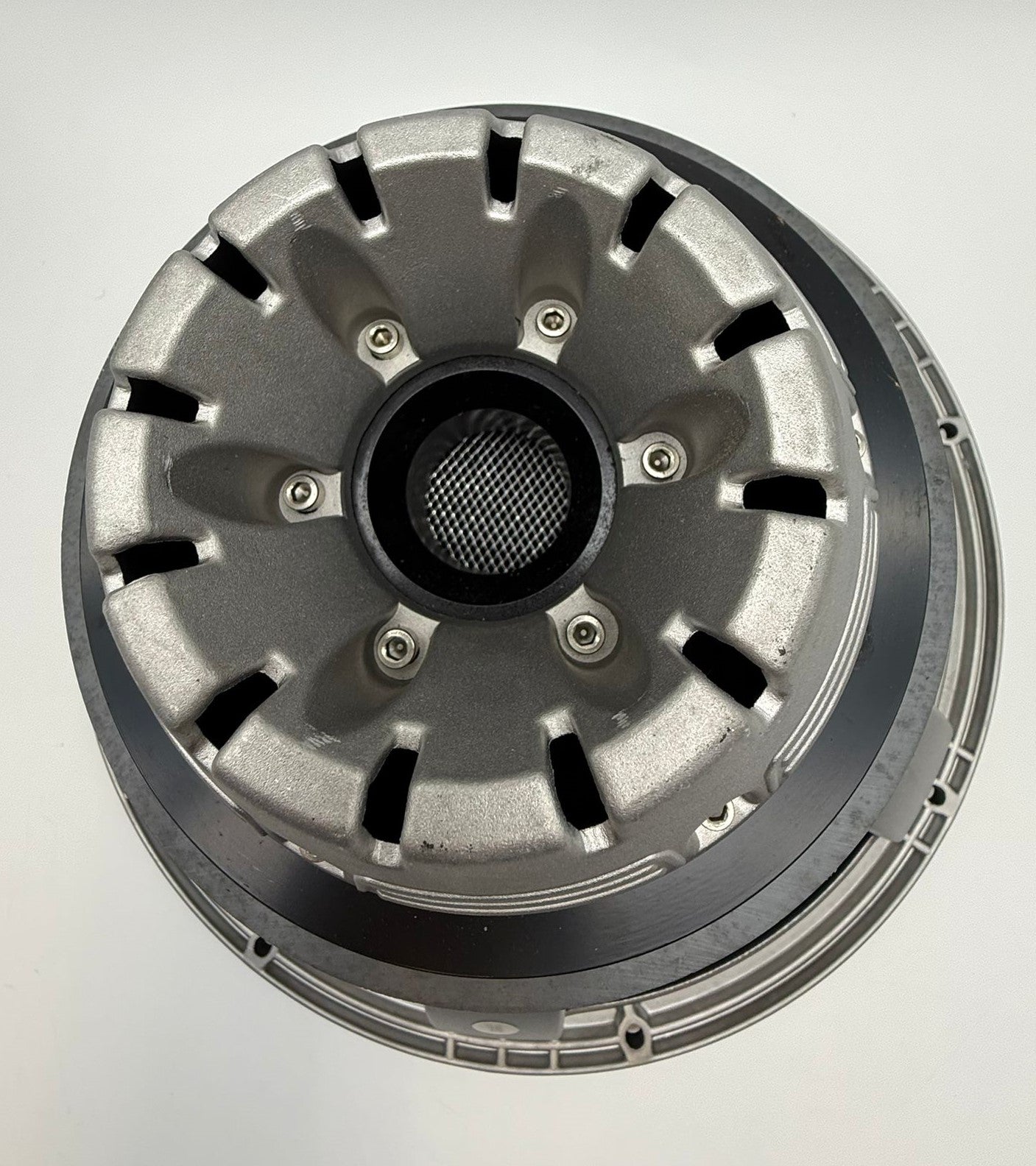

Forced-air cooling system ensures low noise and high reliability
Water-repellent cone and epoxy-coated plates for outdoor use
Ideal for vented, horn-loaded, and bandpass subwoofer enclosures
Specifications
Nominal Diameter: 460 mm (18 in)
Rated Impedance: 8 Ohm
AES Power: 1800 W
Peak Power: 3600 W (Program) / 10 000 W Instantaneous Peak
Sensitivity: 95 dB
Frequency Range: 30 – 2000 Hz
Power Compression: 0.6 dB @ –10 dB, 2.0 dB @ –3 dB, 3.4 dB @ Full Power
Recommended Frequency Limit: 300 Hz
Recommended Enclosure Volume: 100 – 350 L (3.53 – 12.36 cu ft)
Minimum Impedance: 5.7 Ohm @ 25 °C
Max Peak-to-Peak Excursion: 45 mm (1.77 in)
Voice Coil Diameter: 100 mm (4 in), Copper Winding
Suspension: Triple Roll Polycotton

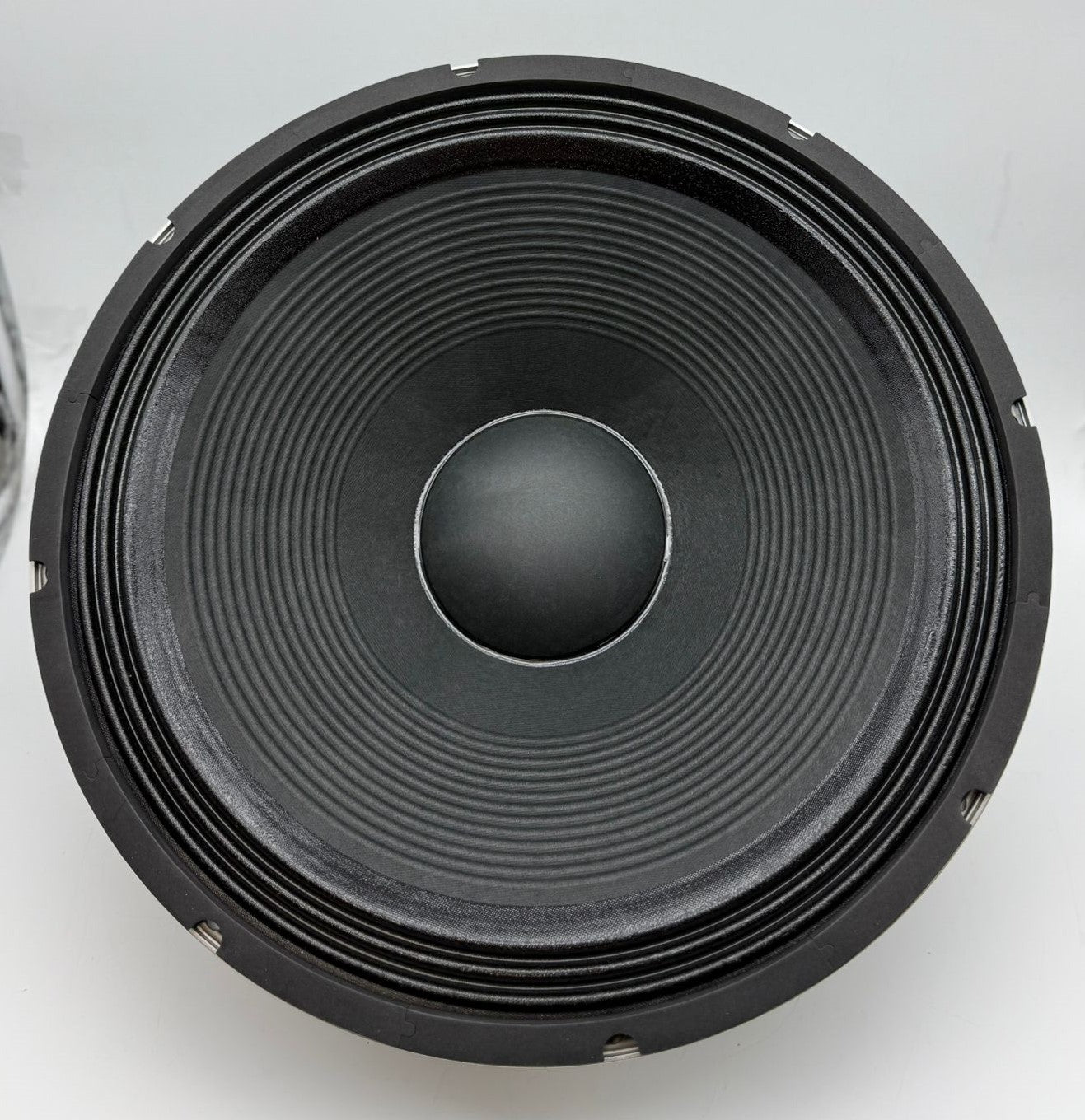

Cone: Curvilinear Fiberglass-Loaded Cellulose
Thiele-Small Parameters
Fs: 33 Hz
Re: 4.6 Ohm
Sd: 0.1225 m² (189.9 in²)
Qms: 13.00 Qes: 0.42 Qts: 0.41
Vas: 185 L (6.53 cu ft)
Mms: 266 g (0.59 lb)
Bl: 24.5 Tm
Xmax: ± 12 mm (± 0.47 in)
Le (1 kHz): 1.80 mH
Reference Efficiency (1W/1m): 94 dB (half space)
Physical Details
Overall Diameter: 462 mm (18.18 in)
Mounting Holes: 8 × 8.5 mm (0.33 in)
Bolt Circle Diameter: 438 – 440 mm (17.24 – 17.32 in)
Front Cutout Diameter: 425 mm (16.73 in)
Rear Cutout Diameter: 414 mm (16.30 in)
Total Depth: 275 mm (10.83 in)
Flange & Gasket Thickness: 24 mm (0.94 in)
Net Weight: 13.2 kg (29.1 lb)
Shipping Weight: 14.6 kg (32.2 lb)
Packaging Dimensions: 19 × 19 × 10.1 in
Manufacturer Details
Brand: Eighteen Sound

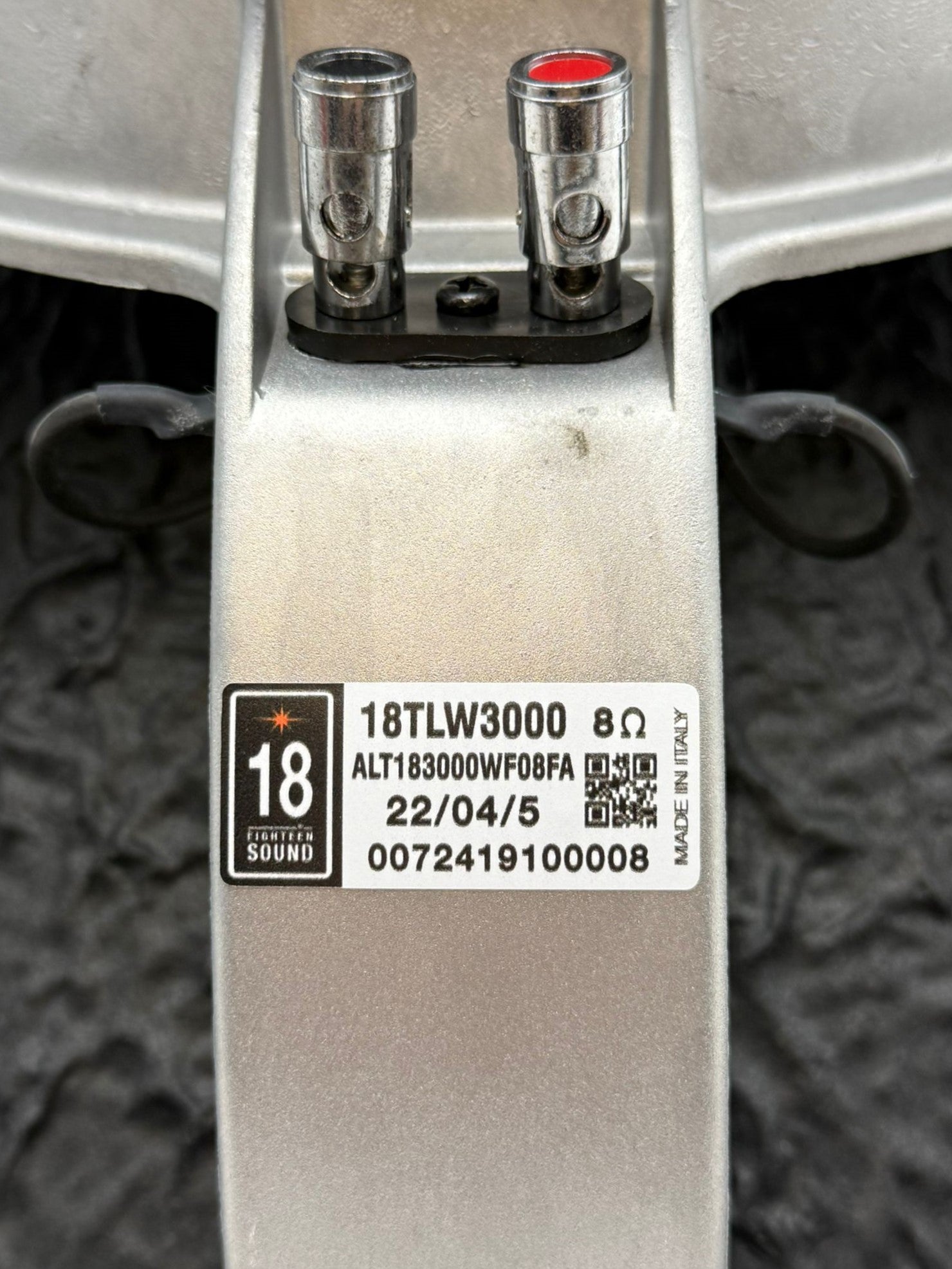

Model: 18TLW3000-8
Product Dimensions: 18.98 × 10.12 × 18.98 in
Item Weight: 32.2 lb
Country of Origin: Italy
